Mass Air Flow (MAF) Sensor Removal/Installation - 3.0L

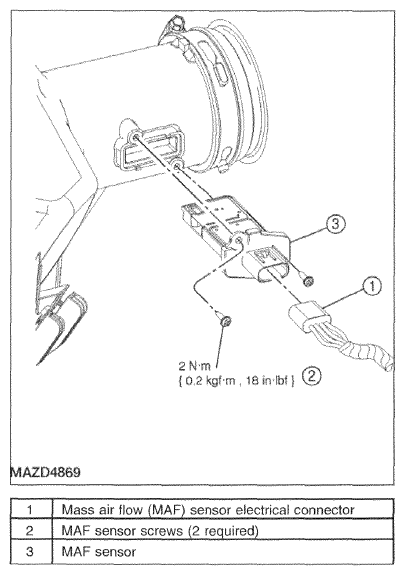

Fig 1: Mass Air Flow (MAF) Sensor Replacement Components With Torque Specifications (3.0L)

Courtesy of MAZDA MOTORS CORP.

CAUTION:

• The mass air flow (MAF) sensor electronics module and body are calibrated as a unit and must be serviced as a unit Do not tamper with the sensing elements located in the air flow bypass of the MAF body.

1. Disconnect the mass air flow (MAF) sensor electrical connector.
2. Remove the 2 screws and the MAF sensor.
   • To install, tighten to 2 N.m {0.2 kgf.m, 18 in.lbf}.
3. To install, reverse the removal procedure.
