Manifold Absolute Pressure (Map) Sensor Removal/Installation - 3.0L

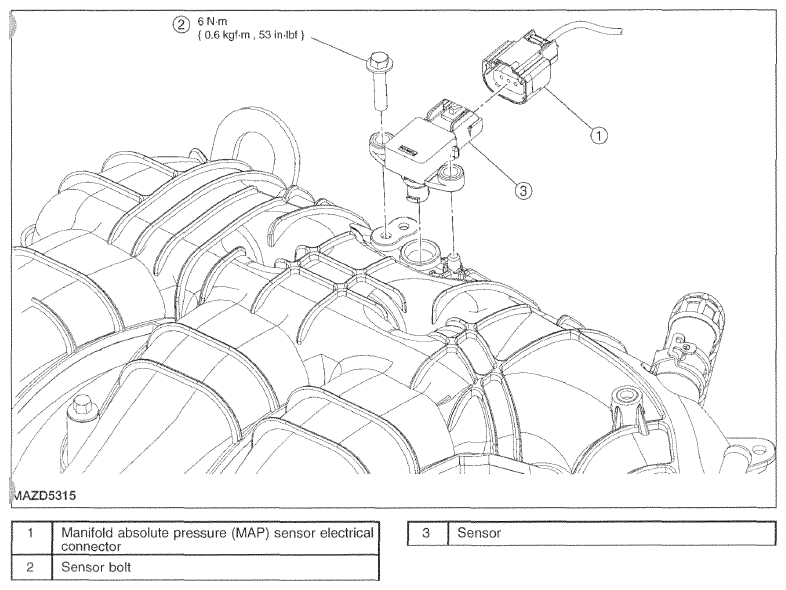

Fig 1: Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications (3.0L)

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the MAP sensor electrical connector.
2. Remove the bolt and the MAP sensor.
   • To install, tighten to 6 N.m (0.6 kgf.m, 53 in.lbf).
   • When installing the sensor, if the bolt fails to hold specified torque, relocate the sensor and retain, using the auxiliary bolt hole in the upper intake manifold.
3. To install, reverse the removal procedure.
   NOTE:

   • Clean and inspect the sealing surface.
