Heated Oxygen Sensor (Ho2S) And Catalyst Monitor Sensor Removal/Installation - 2.5L

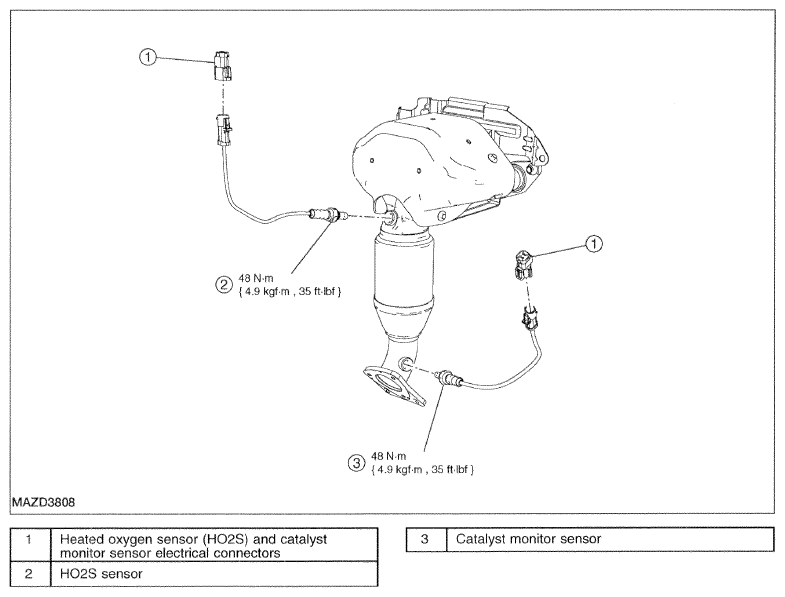

Fig 1: Heated Oxygen Sensor (HO2S) And Catalyst Monitor Sensor Replacement Components With Torque Specifications (2.5L)

Courtesy of MAZDA MOTORS CORP.

1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
2. Disconnect the heated oxygen sensor (HO2S) and the catalyst monitor sensor electrical connectors.
3. Using the special tool, remove the HO2S and catalyst monitor sensor.
   • To install, tighten to 48 N.m {4.9 kgf.m, 35 ft.lbf}.
     NOTE:

     • If necessary, lubricate the sensor threads with penetrating and lock lubricant to assist in removal.
       Fig 2: Removing HO2S And Catalyst Monitor Sensor Using Special Tool

       Courtesy of MAZDA MOTORS CORP.
4. To install, reverse the removal procedure.

NOTE:

• Apply a light coat of anti-seize lubricant to the threads of the heated oxygen sensor (HO2S) and the catalyst monitor sensor.
