Cylinder Head Temperature (CHT) Sensor Removal/Installation - 2.5L

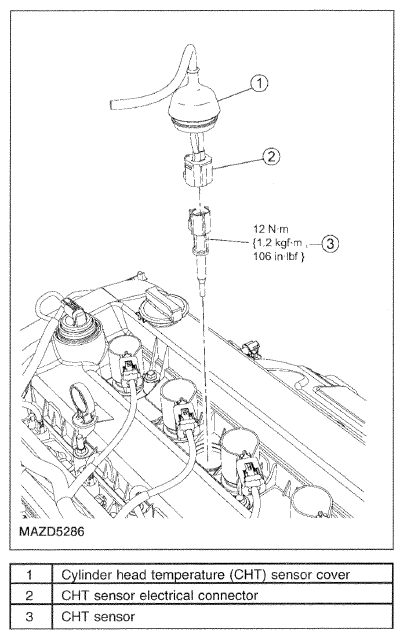

Fig 1: Cylinder Head Temperature (CHT) Sensor Replacement Components With Torque Specifications (2.5L)

Courtesy of MAZDA MOTORS CORP.

1. Detach the cylinder head temperature (CHT) sensor cover and position aside.
2. Disconnect the CHT sensor electrical connector.
3. Remove the CHT sensor.
   • To install, tighten to 12 N.m {1.2 kgf.m, 106 in.lbf}.
4. To install, reverse the removal procedure.
