Crankshaft Position (CKP) Sensor Removal/Installation - 3.0L: Notes

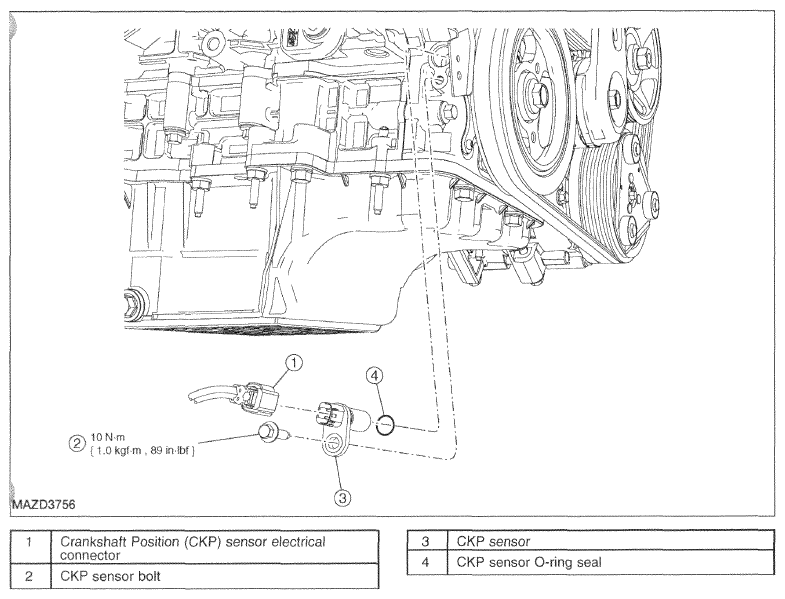

Fig 1: Crankshaft Position (CKP) Sensor Replacement Components With Torque Specifications (3.0L)

G07434985

Courtesy of MAZDA MOTORS CORP.
