Crankshaft Position (CKP) Sensor Removal/Installation - 2.5L: Notes

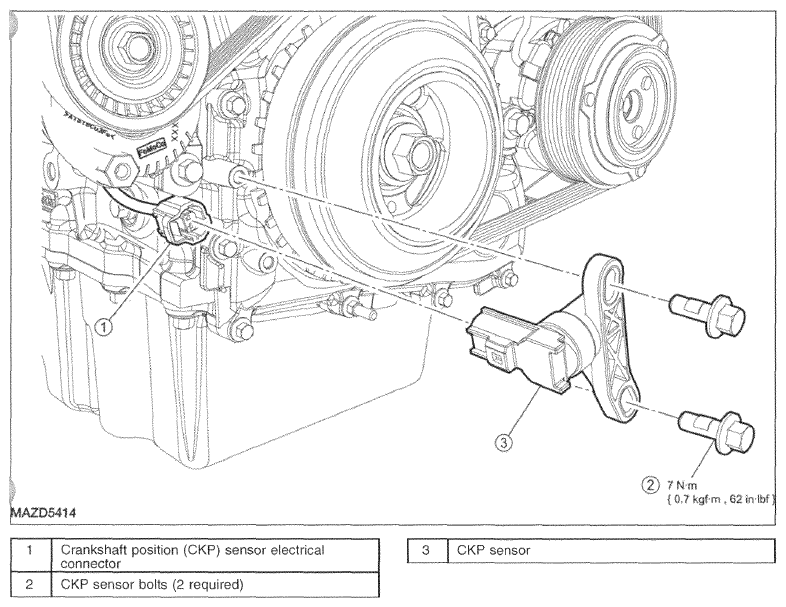

Fig 1: Crankshaft Position (CKP) Sensor Replacement Components With Torque Specifications (2.5L)

G07434976

Courtesy of MAZDA MOTORS CORP.
