Camshaft Position (CMP) Sensor Removal/Installation - 2.5L

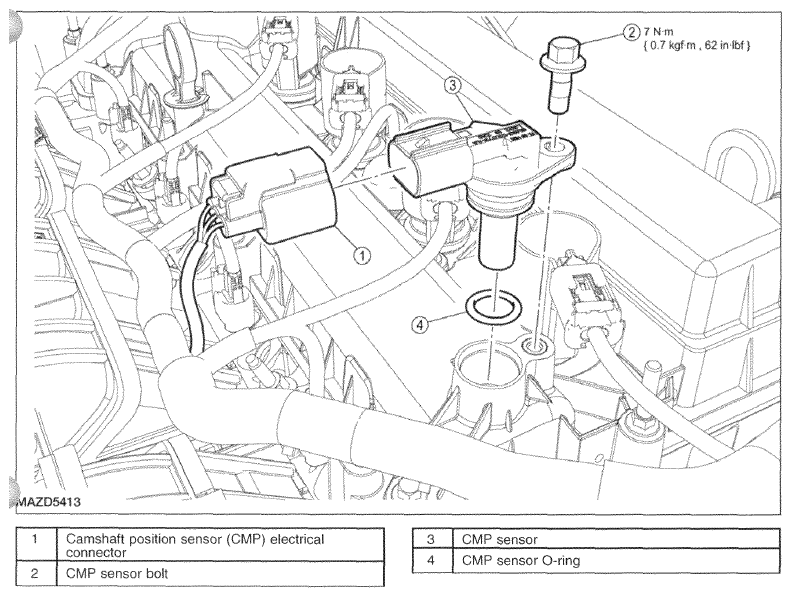

Fig 1: Camshaft Position (CMP) Sensor Replacement Components With Torque Specifications (2.5L)

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the camshaft position (CMP) sensor electrical connector.
2. Remove the bolt and the CMP sensor.
   • To install, tighten to 7 N.m {0.7 kgf.m, 62 in.lbf}.
   • Inspect the O-ring seal and install new as necessary.
3. To install, reverse the removal procedure.
   NOTE:

   • Lubricate the CMP sensor O-ring seal with clean engine oil.
