Exterior Mirror Control Switch Removal/Installation

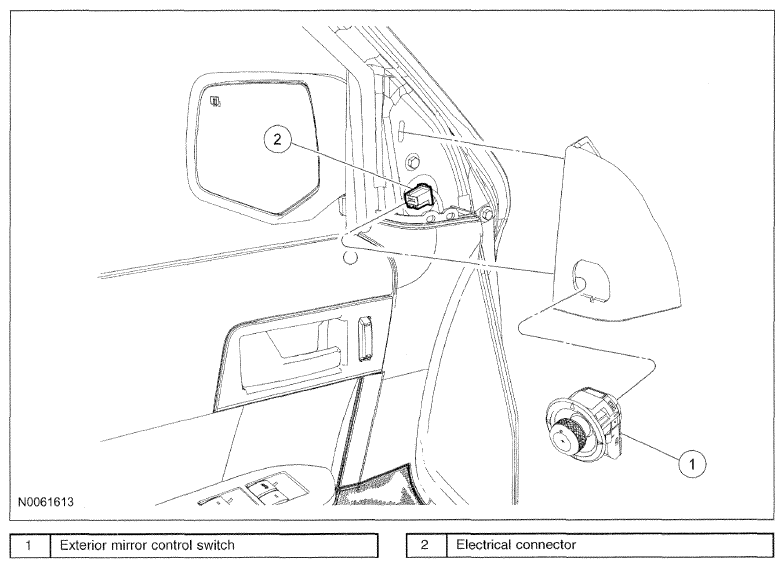

Fig 1: Exterior Mirror Control Switch Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

1. Remove the LH sail panel.
   • Disconnect the electrical connector.
2. Remove the exterior mirror control switch.
   • Press the 2 retaining tabs.
3. To install, reverse the removal procedure.
   Fig 2: Locating Exterior Mirror Control Switch Retaining Tabs

   Courtesy of MAZDA MOTORS CORP.
