Liftgate Release Switch Removal/Installation

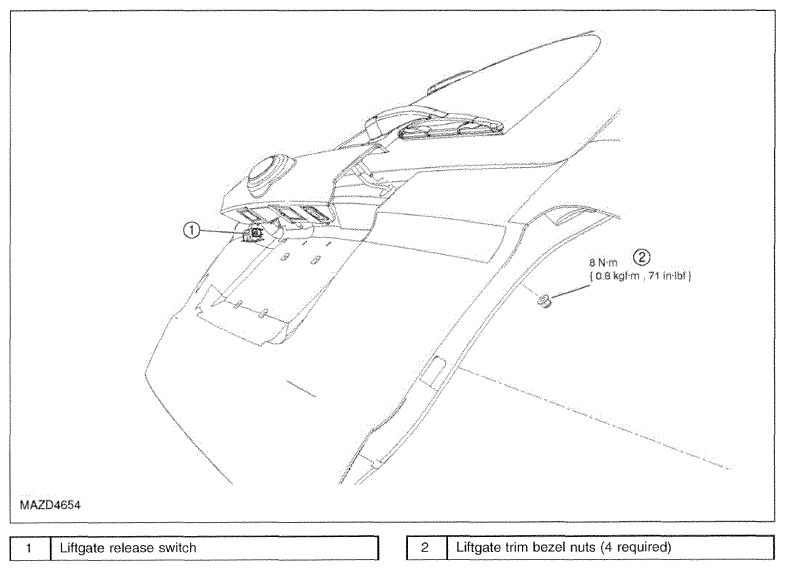

Fig 1: Liftgate Release Switch Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

1. Remove the liftgate trim panel. See LIFTGATE TRIM PANEL REMOVAL/INSTALLATION .
2. Remove the 4 liftgate trim bezel nuts and remove the bezel from the liftgate.
   • Disconnect the electrical connector.
   • Using an appropriate tool, press the tabs and remove the liftgate release switch.
   • To install, tighten to 8 N.m {0.8 kgf.m, 71 in.lbf}.
3. To install, reverse the removal procedure.
