Liftgate Handle, Lock And Latch - Exploded View

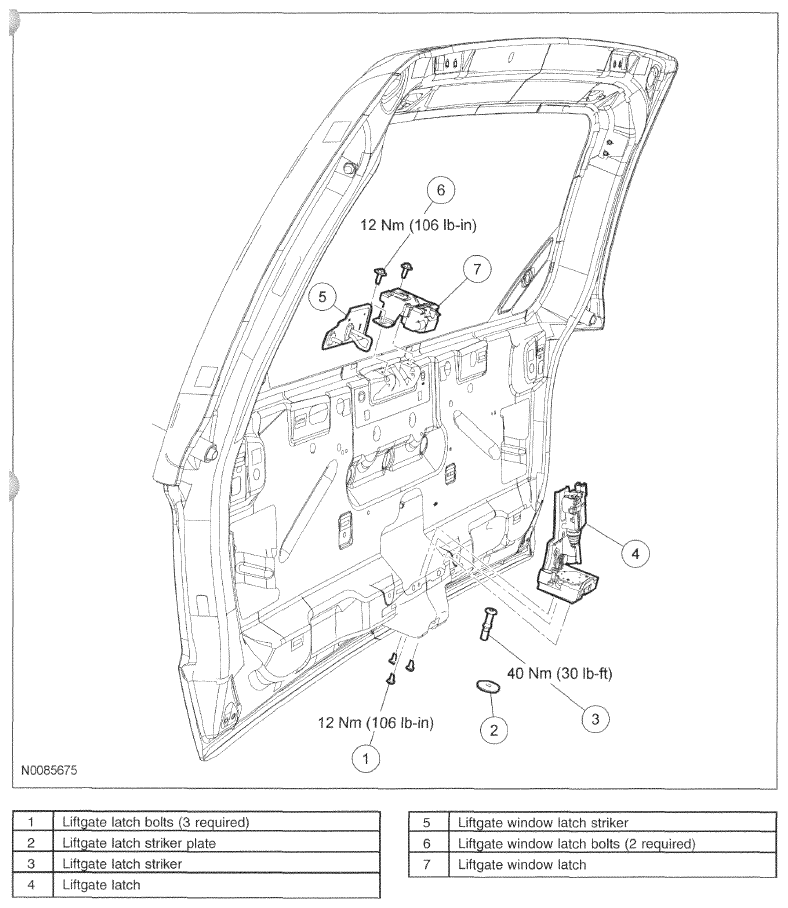

Fig 1: Exploded View Of Liftgate Handle, Lock And Latch Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

1. For additional information, see the appropriate procedures in this service information.
