Door Lock Control Switch Removal/Installation

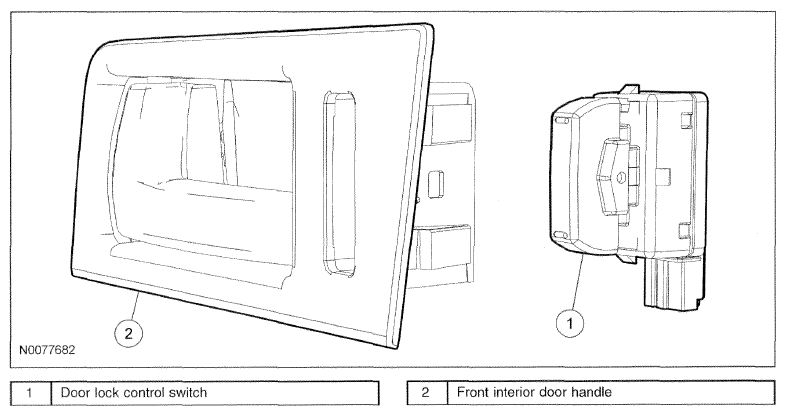

Fig 1: Identifying Door Lock Control Switch Components

Courtesy of MAZDA MOTORS CORP.

1. Remove the interior door handle, See INTERIOR DOOR HANDLE REMOVAL/INSTALLATION  .
2. Release the tabs and remove the door lock control switch.
   Fig 2: Locating Door Lock Control Switch Tabs

   Courtesy of MAZDA MOTORS CORP.
3. To install, reverse the removal procedure.
