Smart Junction Box (SJB) Removal/Installation: Notes

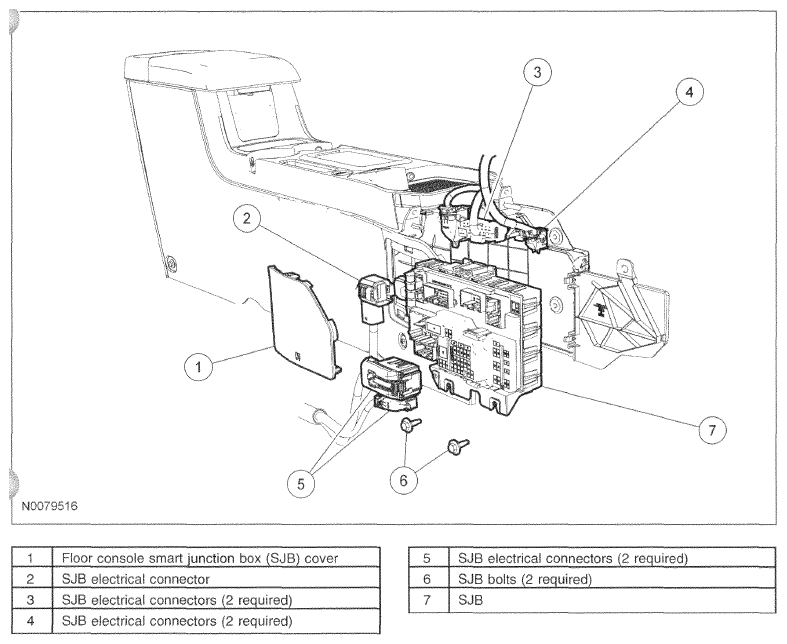

Fig 1: Identifying Smart Junction Box Components

G07436833

Courtesy of MAZDA MOTORS CORP.
