Steering Column MULTIFUNCTION Switch Removal/Installation

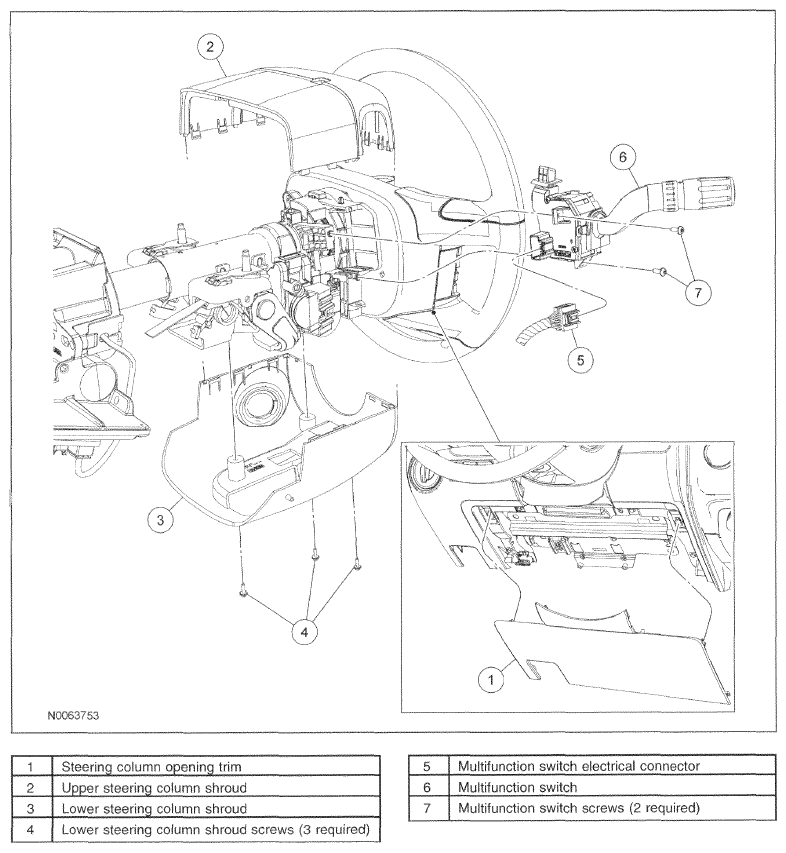

Fig 1: Identifying Steering Column Multifunction Switch Components

Courtesy of MAZDA MOTORS CORP.

1. Remove the steering column opening trim.
2. Remove the 3 lower steering column shroud screws.
3. Remove the upper and lower steering column shrouds.
4. Remove the 2 multifunction switch screws.
5. Disconnect the multifunction switch electrical connector and remove the switch.
6. To install, reverse the removal procedure.
