4X4 Control Module Removal/Installation

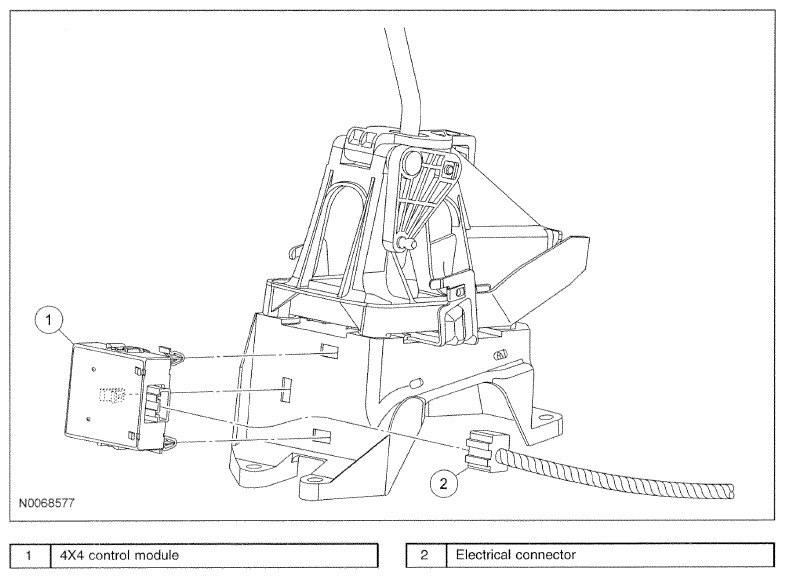

Fig 1: Identifying 4X4 Control Module Components

Courtesy of MAZDA MOTORS CORP.

1. Remove the floor console. See FLOOR CONSOLE REMOVAL/INSTALLATION .
2. Disconnect the electrical connector.
3. Lift upward on the module to release the fasteners from the shifter base. Remove the 4X4 control module.
4. To install, reverse the removal procedure.
