Resistance Inspection
CAUTION:
- If a tester lead is inserted forcefully into a terminal during resistance measurement, the terminal may deform and cause a decrease in the contact pressure between terminals while the connector is connected. When measuring resistance, attach a tapered lead or wire to the tester lead and lightly touch the terminal with the tip.
- Disconnect the negative battery cable.
- Remove the fuel pump resister. (See FUEL PUMP RESISTOR REMOVAL/INSTALLATION .)

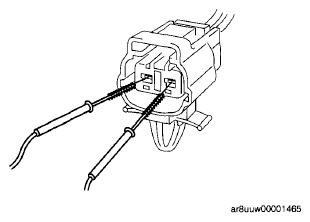

- Verify that the continuity between the fuel pump resister terminal A and B is within the specification.
- If not within the specification, replace the fuel pump resistor. (See FUEL PUMP RESISTOR REMOVAL/INSTALLATION .)
Fuel pump resistor continuity
0.304-0.336 ohms [20°C {68°F}]
