Hazard Warning Switch Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The hazard switch is not reuseable since it is broken when disconnected from the hazard switch knob. Do not remove the hazard switch except when replacing it.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Shift lever knob (MT) (See TRANSMISSION REMOVAL/INSTALLATION [P66M-D] .)
    2. Shift knob (AT) (See SELECTOR LEVER REMOVAL/INSTALLATION .)
    3. Console panel (See CONSOLE REMOVAL/INSTALLATION .)
    4. Ashtray panel (See CONSOLE REMOVAL/INSTALLATION .)
    5. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    6. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
    7. Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION .)
    8. Speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    9. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
  3. Remove the screw.
  4. Remove the hazard switch knob.
  5. Remove the hazard switch.
  6. Install in the reverse order of removal.

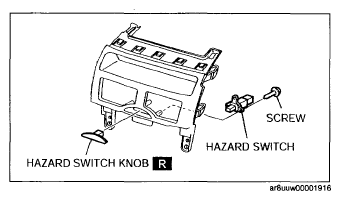

    Fig 1: Identifying Hazard Switch And Knob
    G05986220Courtesy of MAZDA MOTORS CORP.
