Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front fog light cover.

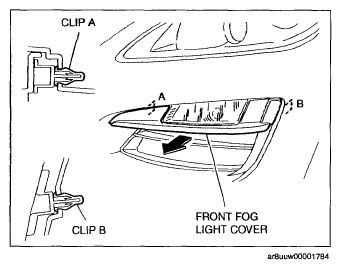

Fig 1: Identifying Front Fog Light Cover And Clips
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

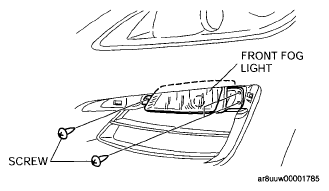

Fig 2: Identifying Front Fog Light And Screw
Courtesy of MAZDA MOTORS CORP.
Hold the back surface of the front fog light and lift it up as shown in the left diagram. Then arc the front fog light as pull it out from the vehicle body with care not to contact the oil cooler.
Disconnect the connector.
Install in the reverse order of removal.
Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING .)

Fig 3: Adjusting Front Fog Light Aiming

Courtesy of MAZDA MOTORS CORP.
