Locknut Disassembly Note

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the locknut while fixing the companion flange using the SST.

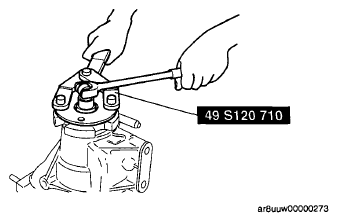

Fig 1: Removing Locknut Fixing Companion Flange

Courtesy of MAZDA MOTORS CORP.

Companion Flange Disassembly Note

Remove the companion flange using the SST.

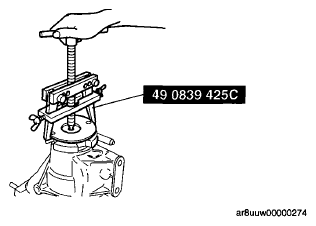

Fig 2: Removing Companion Flange Using SST

Courtesy of MAZDA MOTORS CORP.
