Locknut Assembly Note

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Apply differential oil to the thread of a new locknut.
Tighten a new locknut with the torque recorded at the drive pinion preload adjustment using the SST .

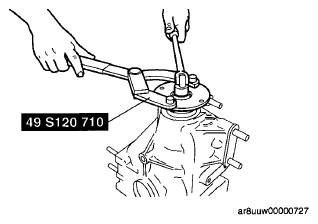

Fig 1: Removing Locknut
Courtesy of MAZDA MOTORS CORP.
Verify that the drive pinion preload is within the specification.
- If not within the specification, perform the preload adjustment again.
  Drive pinion preload

  1.3-1.7 N.m {14-17 kg.cm, 12-15 in.lb}

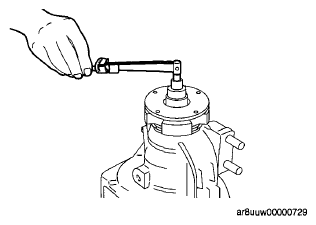

  Fig 2: Identifying Drive Pinion Preload
  Courtesy of MAZDA MOTORS CORP.
