Bearing Cap Assembly Note
WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

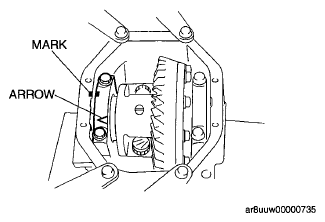

- Align the bearing cap alignment marks and assemble the bearing cap with the arrow facing outward. See figure below.
Tightening torque
72.6-106.9 N.m
{7.41-10.91 kg.m, 53.5-78.84 ft.lb}
- Perform the drive pinion and ring gear tooth contact inspection.
