Procedure After Inspection

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the SSTs  after the inspection and install the brake hose, clamp and brake pipe to their original positions.
  2. Perform air bleeding of the brake line. (See AIR BLEEDING .)

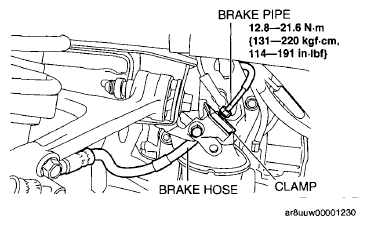

Fig 1: Brake Pipe, Brake Hose And Clamp With Torque Specifications
G05985154Courtesy of MAZDA MOTORS CORP.
