Front Brake (Disc) Removal/Installation: Notes

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. After installation, depress the brake pedal a few times, then verify that the brakes do not drag.

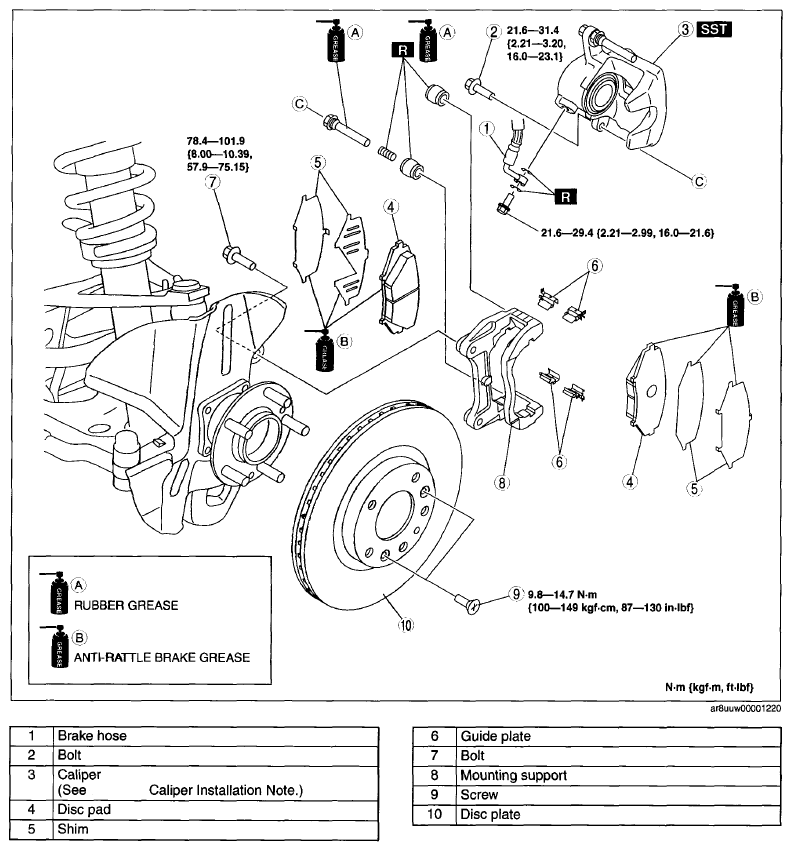

Fig 1: Front Brake (Disc) Removal/Installation Replacement Components With Torque Specifications
G05985160Courtesy of MAZDA MOTORS CORP.
