Front Tweeter Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the screws.
  4. Remove the front tweeter.
  5. Install in the reverse order of removal.

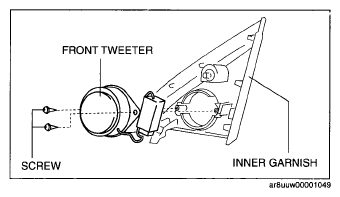

Fig 1: Identifying Front Tweeter, Inner Garnish And Screws
G05986312Courtesy of MAZDA MOTORS CORP.
