Condenser Removal/Installation: Notes
WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the following parts:
- Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
- Console (See CONSOLE REMOVAL/INSTALLATION .)
- Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
- Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION .)
- Rear package side trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
- Rear package center trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)

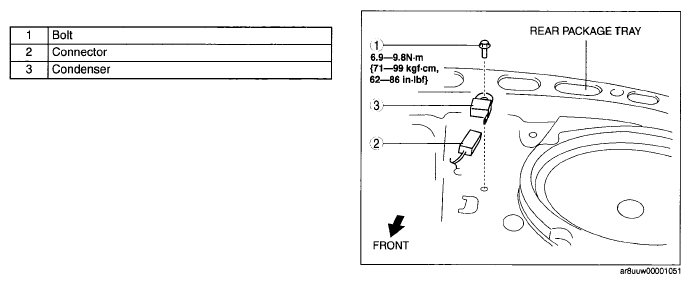

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
