Cigarette Lighter Removal/Installation: Notes

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the ashtray. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

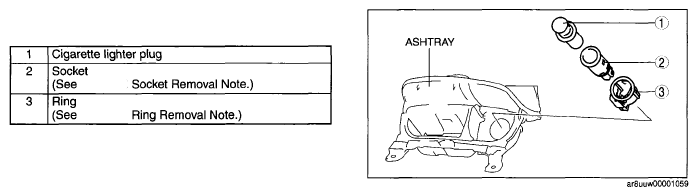

    Fig 1: Locating Cigarette Lighter
    G05986353Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
