Cap Removal Note

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cap in the direction of the arrow (2) shown in the figure while pressing the cap tabs in the direction of the arrow (1.)

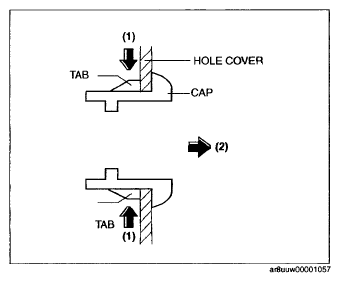

Fig 1: Identifying Cap Removal Direction

Courtesy of MAZDA MOTORS CORP.
