Oil Filter Replacement

WARNING:

Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

CAUTION:

When removing the oil filter, cover up the surrounding area with cloth to prevent oil in the filter from spilling on other parts.
If engine oil is spilled on the exhaust system, wipe it off completely. If you fail to wipe the spilled engine oil, it will produce fumes because of the heat.

Remove the under cover.

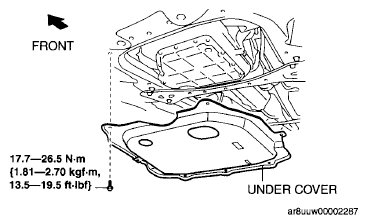

Fig 1: Under Cover Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the oil filter using the SST.
Clean the installation surface of the oil filter.
Apply clean engine oil to the O-ring of a new oil filter.
Tighten the oil filter using the SST and according to the instructions on the package or side of the oil filter.
Tightening torque (reference value)

11.7-15.7 N.m {1.20-1.60 kgf.m, 8.7-11.5 ft.lbf}

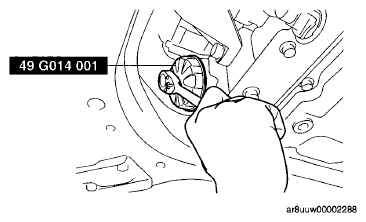

Fig 2: Tightening Oil Filter Using SST
Courtesy of MAZDA MOTORS CORP.
Wipe off the spilled engine oil from the surrounding area.
Start the engine and confirm that there is no oil leakage.
- If there is oil leakage, repair or replace the applicable part.
Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION .)
Install the under cover.
