Blower Unit Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Console (See CONSOLE REMOVAL/INSTALLATION .)
    2. Ashtray
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
    5. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    6. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    7. Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION .)
    8. Steering shaft installation nuts (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    9. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    10. A/C amplifier (See A/C AMPLIFIER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See A/C AMPLIFIER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
    11. TCM (AT) (See TCM REMOVAL/INSTALLATION [SJ6A-EL] .)
    12. Auto light/wiper control module (See AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION .)
    13. Door lock control module (See DOOR LOCK CONTROL MODULE REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS SYSTEM .)
    14. Dashboard (See DASHBOARD REMOVAL/INSTALLATION .)
  3. Remove the blower unit as shown in the figure.
  4. Install in the reverse order of removal.

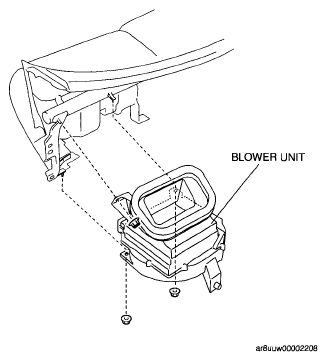

Fig 1: Identifying Blower Unit
G05985415Courtesy of MAZDA MOTORS CORP.
