Differential Component Disassembly Note

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the differential component to the SSTs.

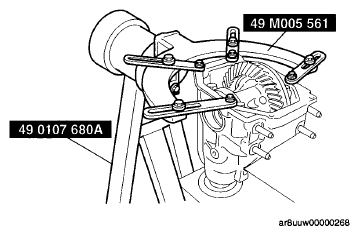

    Fig 1: Installing Differential Component To SSTs
    G05985039Courtesy of MAZDA MOTORS CORP.
