Home >> Mazda >> 2011 >> RX-8 R3, 1.3 4 >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Starting System >> Starter Removal/Installation >> Mt

Starter Removal/Installation: Mt

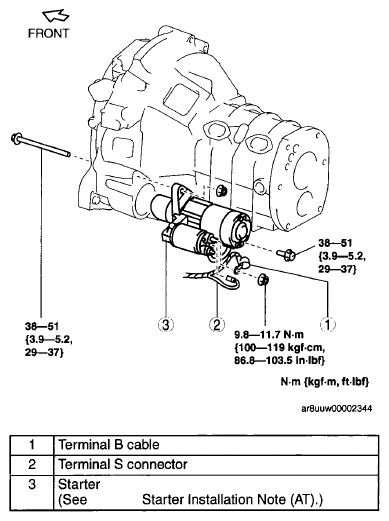

Fig 1: Starter Replacement Components With Torque Specifications (MT)

G05984872

Courtesy of MAZDA MOTORS CORP.
