Exhaust Manifold Removal Note

  1. Remove the under cover.
  2. Loosen the bolts in the order shown in the illustration.

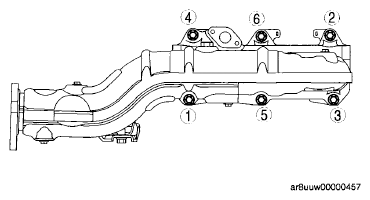

Fig 1: Loosening Order Of Exhaust Manifold Mounting Bolts
G05981023Courtesy of MAZDA MOTORS CORP.
