Engine Mount Bracket (RH) Removal Note

1. Attach the SST  and support the engine.
2. Remove the engine mount rubber (LH) installation nut.

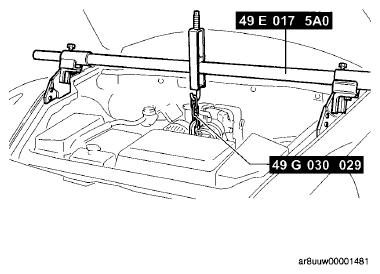

Fig 1: Supporting Engine Using SST
Courtesy of MAZDA MOTORS CORP.
3. Remove in the order indicated in the illustration.

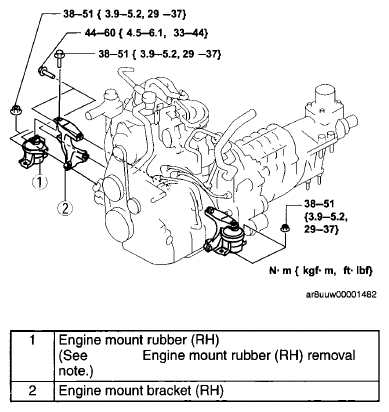

Fig 2: Engine Mount Bracket Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
