Seat Track Position Sensor Connector End View

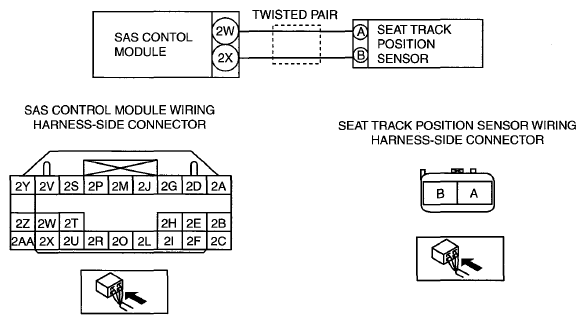

Fig 1: Seat Track Position Sensor Connector End View

G07878347

Courtesy of MAZDA MOTORS CORP.
