Passenger-Side Air Bag Module Connector End View

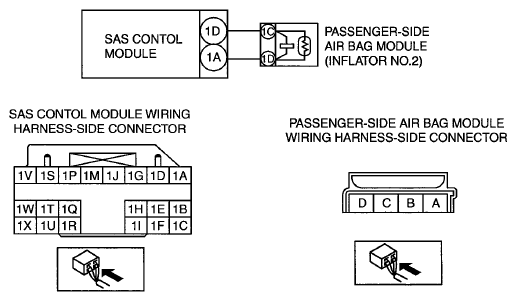

Fig 1: Passenger-Side Air Bag Module Connector End View
G07878337Courtesy of MAZDA MOTORS CORP.

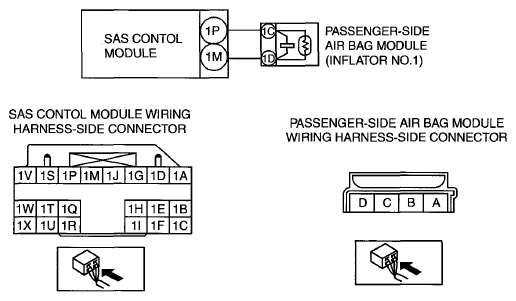

Fig 1: Passenger-Side Air Bag Module Connector End View
G07878333Courtesy of MAZDA MOTORS CORP.
