Home >> Mazda >> 2011 >> RX-8 R3, 1.3 4 >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Connector End Views >> Connector End ViewS >> Line Pressure Control Solenoid Connector End View

Line Pressure Control Solenoid Connector End View

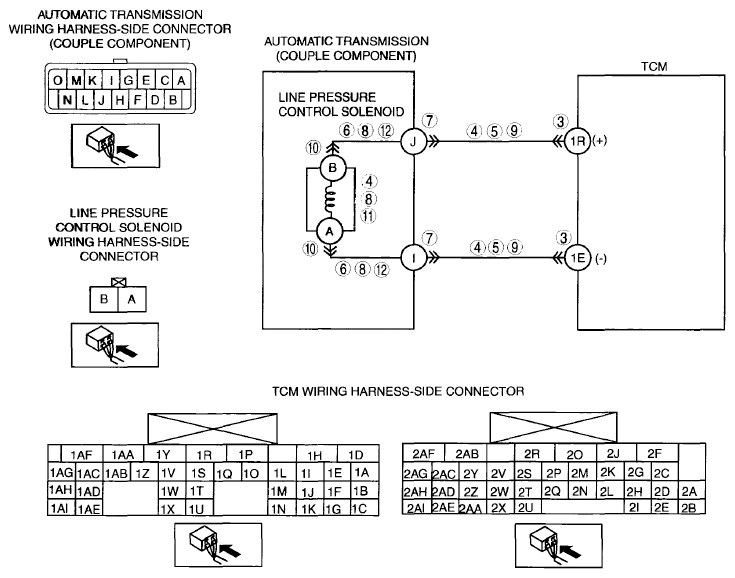

Fig 1: Line Pressure Control Solenoid Connector End View

G05981223

Courtesy of MAZDA MOTORS CORP.
