Intermediate Connector End View And EPS Motor Connector End View

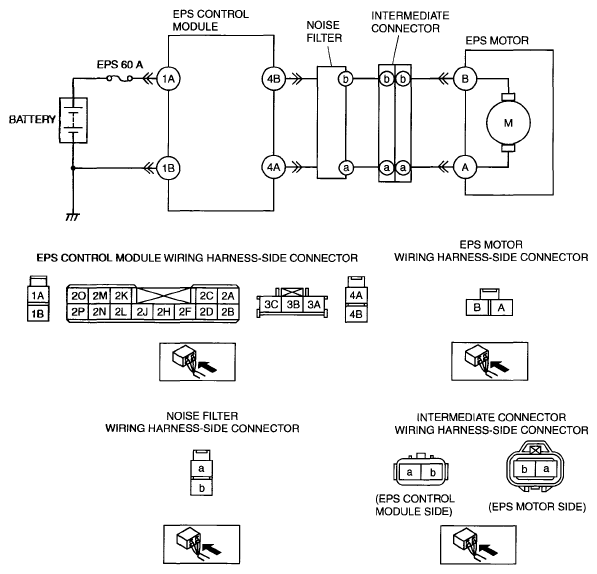

Fig 1: Intermediate Connector End View And EPS Motor Connector End View

G05985334

Courtesy of MAZDA MOTORS CORP.
