Driver-Side Side Air Bag Module Connector End View

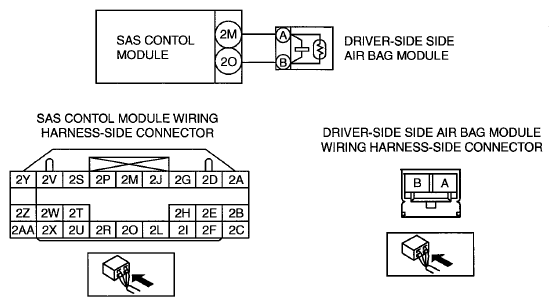

Fig 1: Driver-Side Side Air Bag Module Connector End View

G07878334

Courtesy of MAZDA MOTORS CORP.
