ABS Wheel-Speed Sensor Connector End View

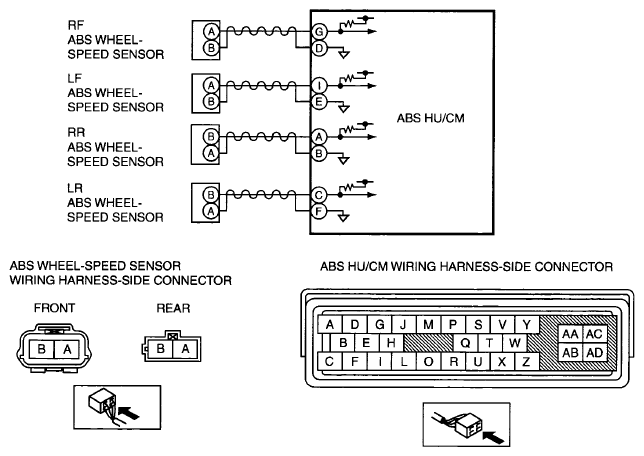

Fig 1: ABS Wheel-Speed Sensor Connector End View

G05985098

Courtesy of MAZDA MOTORS CORP.
