Battery Recharging [13B-MSP]
WARNING:
- Keep all flames away from the battery, otherwise evaporated gas from the battery fluid may catch fire, and cause serious injury.
- Remove the battery filler caps when recharging to prevent battery deformation or damage.
CAUTION:
- Do not quick charge for more than 30 min. It will damage the battery.

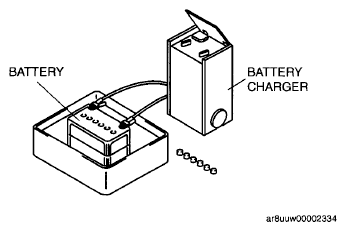

- Remove the battery and then place it in a pan of water. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
- Remove the battery filler caps.
- Connect a battery charger to the battery and adjust the charging current as follows.
- After the battery is recharged, verify that the voltage is within the specification and remains at the same value for 1 h or more after the recharging has been completed.
Battery slow charge current 80D26L (55): 5.5-6.5 A
Battery quick charge current [30 min] 80D26L (55): 35 A
- If not within the specification, replace the battery.
Standard voltage 12.4 V or more
