Trunk Mat Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the fasteners A and bolts, then remove the tool box.

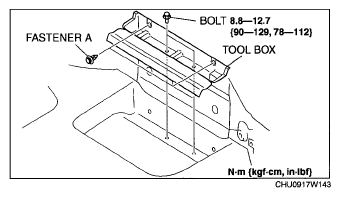

    Fig 1: Tool Box, Fasteners And Bolts With Torque Specifications
    G05986155Courtesy of MAZDA MOTORS CORP.
  4. Remove the fasteners B, then remove the trunk mat.
  5. Install in the reverse order of removal.

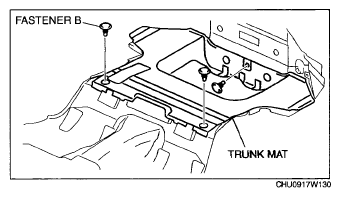

    Fig 2: Identifying Trunk Mat And Fasteners B
    G05986156Courtesy of MAZDA MOTORS CORP.
