Dashboard Disassembly/Assembly

  1. Remove the following parts:
    1. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    2. Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
    3. Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION .)
    4. Speaker grill (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    5. Center speaker (See CENTER SPEAKER REMOVAL/INSTALLATION .)
    6. GPS antenna (Vehicles with car-navigation system) (See GPS ANTENNA REMOVAL/INSTALLATION .)
    7. Dashboard garnish (See DASHBOARD GARNISH REMOVAL/INSTALLATION .)
    8. Driver-side demister grille. (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
    9. Passenger-side demister grille. (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
    10. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
    11. Center ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
    12. Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

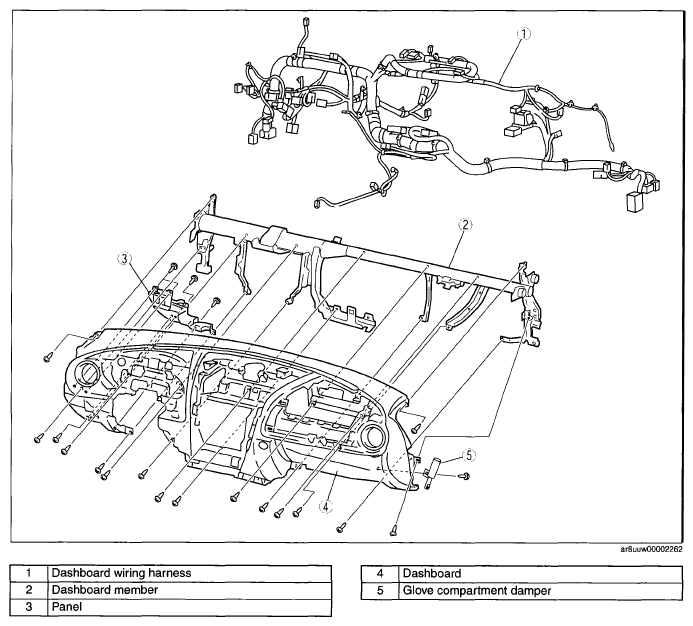

    Fig 1: Exploded View Of Dashboard
    G05986116Courtesy of MAZDA MOTORS CORP.
