Console Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION .)
  3. Remove the rear package trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  4. Detach clips A and remove the upper panel.
  5. Disassemble in the order indicated in the table.

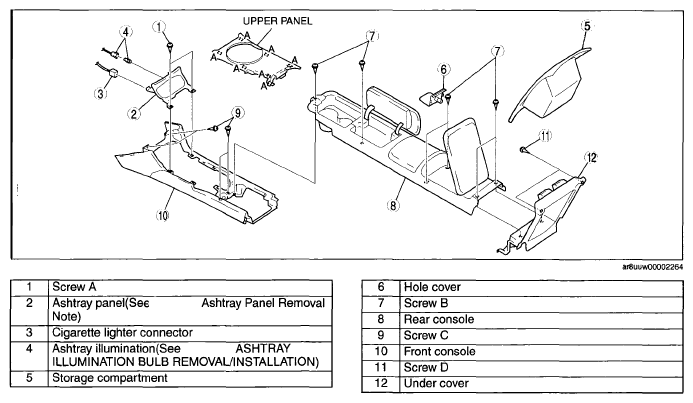

    Fig 1: Identifying Console Components
    G05986131Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
