Rear Console

  1. Disassemble in the order indicated in the table.

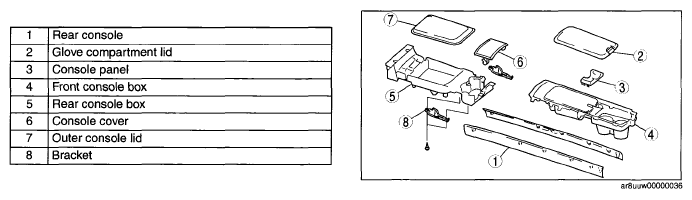

    Fig 1: Exploded View Of Rear Console
    G05986133Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
