Front Console

  1. Disassemble in the order indicated in the table.

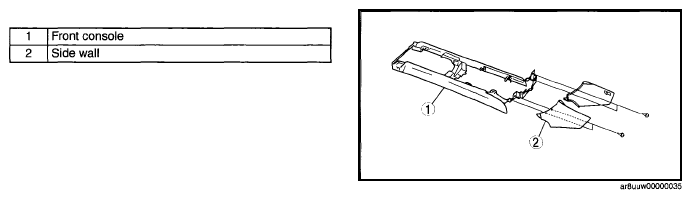

    Fig 1: Identifying Front Console And Side Wall
    G05986132Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
