Interior, Rear

  1. Disconnect the negative battery cable.
  2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the fastener.
  4. Disconnect the connector, then remove the keyless antenna.
  5. Install in the reverse order of removal.

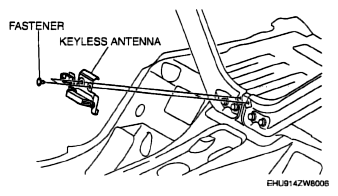

Fig 1: Identifying Fastener And Keyless Antenna (Rear)
G04928912Courtesy of MAZDA MOTORS CORP.
