System Wiring Diagram [Advanced Keyless And Start System]
System Wiring Diagram [Advanced Keyless And Start System]

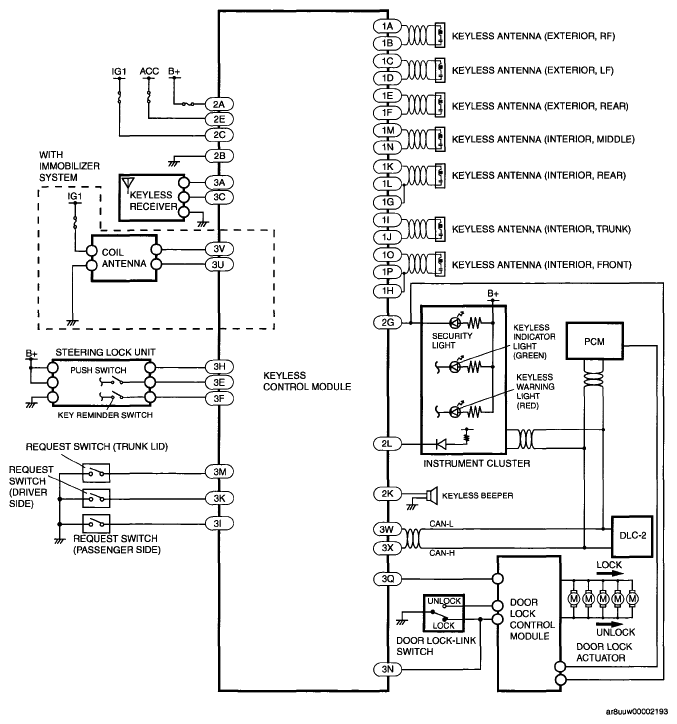

Fig 1: System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
