Symptom Troubleshooting [Advanced Keyless Entry And Start System] Keyless Entry System Wiring Diagram [Advanced Keyless Entry And Start System]

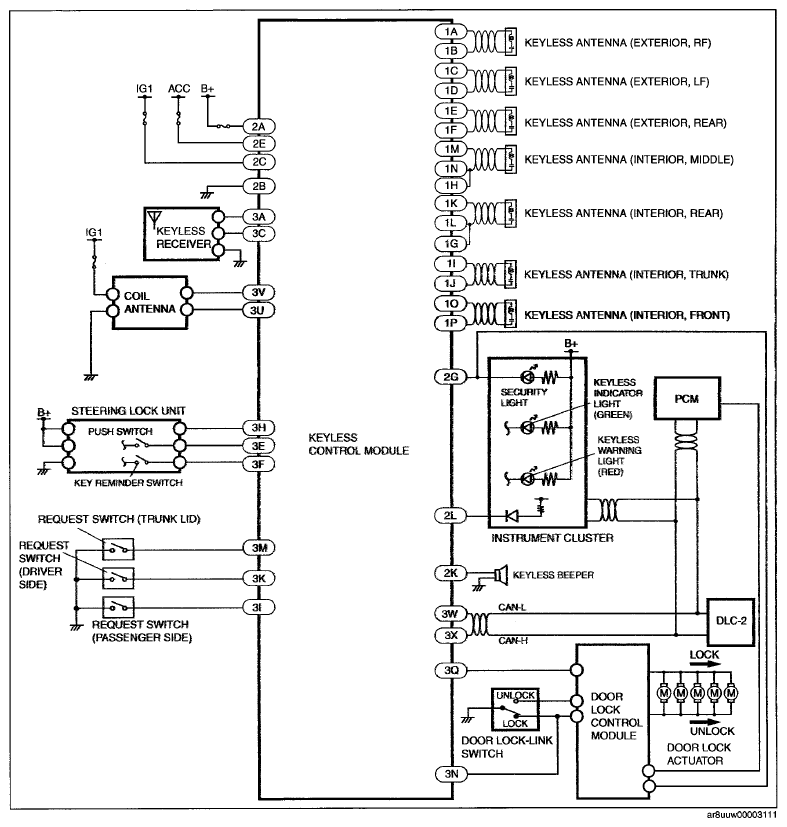

Fig 1: Keyless Entry System Wiring Diagram (Advanced Keyless Entry And Start System)
G07878361Courtesy of MAZDA MOTORS CORP.
