Pulsation Damper Removal/Installation

Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
Remove the fuel distributor (intake manifold side.) (See FUEL INJECTOR REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

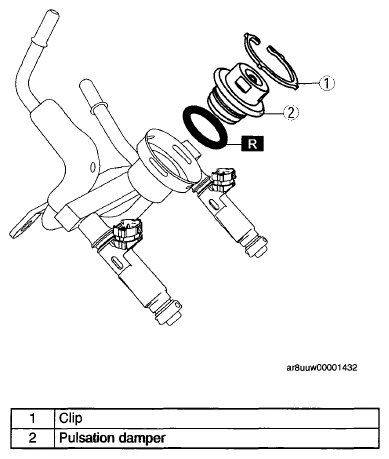

Fig 1: Identifying Pulsation Damper Remove/Install Components
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
