RX-8 R3, 1.3 2
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Fuel System Location Index
>>
Engine Compartment Side
Engine Compartment Side

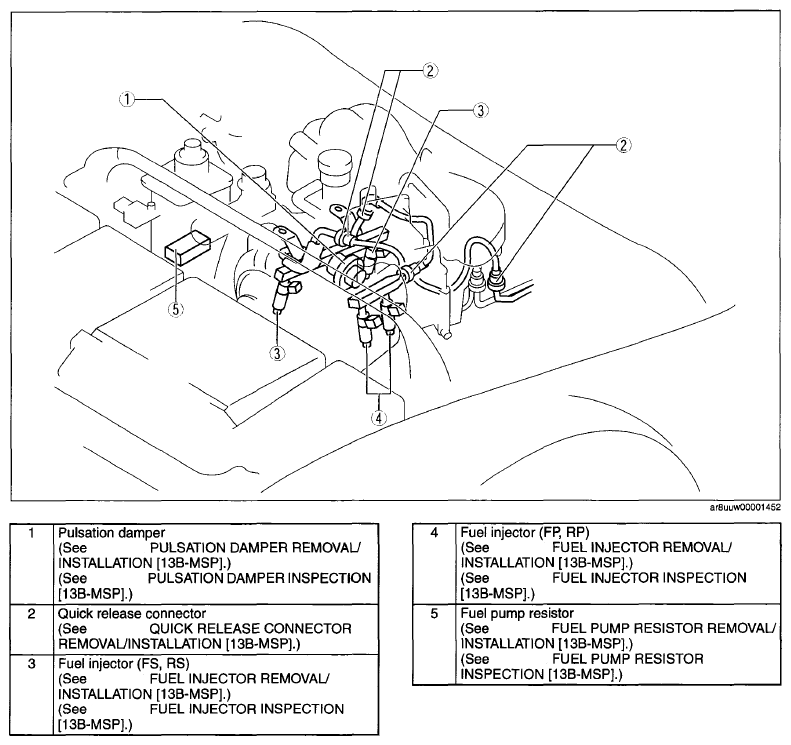

Fig 1: Identifying Fuel System Components Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
