Starter Disassembly/Assembly: Mt

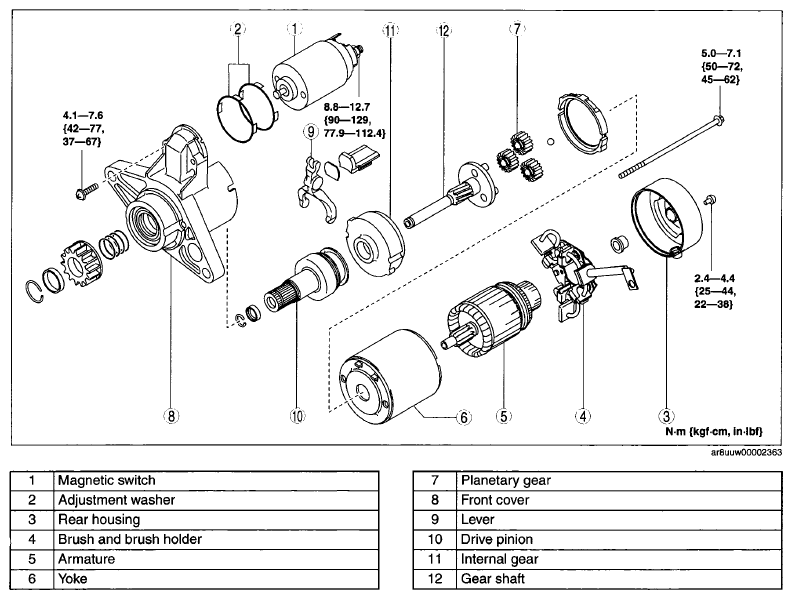

Fig 1: Disassembled View Of Starter (MT) With Torque Specifications

G05984893

Courtesy of MAZDA MOTORS CORP.
